Biosafety inflatable airtight pass box

Inflatable airtight pass box is that the double door adopts the inflatable seal method to ensure the air tightness and biological safety of the transfer window. The inflatable sealed transfer window can be used in conjunction with the hydrogen peroxide gas sterilization system to efficiently sterilize and disinfect items. The inflatable sealed transfer window is suitable for the transfer of items in high-level laboratories and clean rooms.

Contact us

  • High Efficiency Airtightness: The double doors of the inflatable sealing pass box are designed with an inflatable double seal, equipped with highly elastic sealing rings, achieving a double sealing strip between the door and the box, greatly enhancing the airtight performance.



    Biosafety Assurance: Shanghai JieHao's biosafety pass box is specifically designed for high-level biosafety laboratories such as BSL-3, BSL-4, ABSL-3, ABSL-4, effectively preventing biological contamination and cross-infection between the laboratory and the outside.



    VHP Disinfection Interface: Equipped with a VHP (vaporized hydrogen peroxide) disinfection interface, it can be connected to VHP disinfection equipment to disinfect items inside the pass box, reducing the risk of contamination during the transfer process.



    Temperature Adaptability: The mechanical devices and rubber components have a wide temperature range, from -40℃ to +50℃, ensuring stable operation even in extreme environments.Structural Strength: The structural design of the pass box allows the box to withstand a pressure of at least 2500Pa, ensuring its stability and safety in high-pressure environments.

    Product Advantages

  • Easy-to-Clean

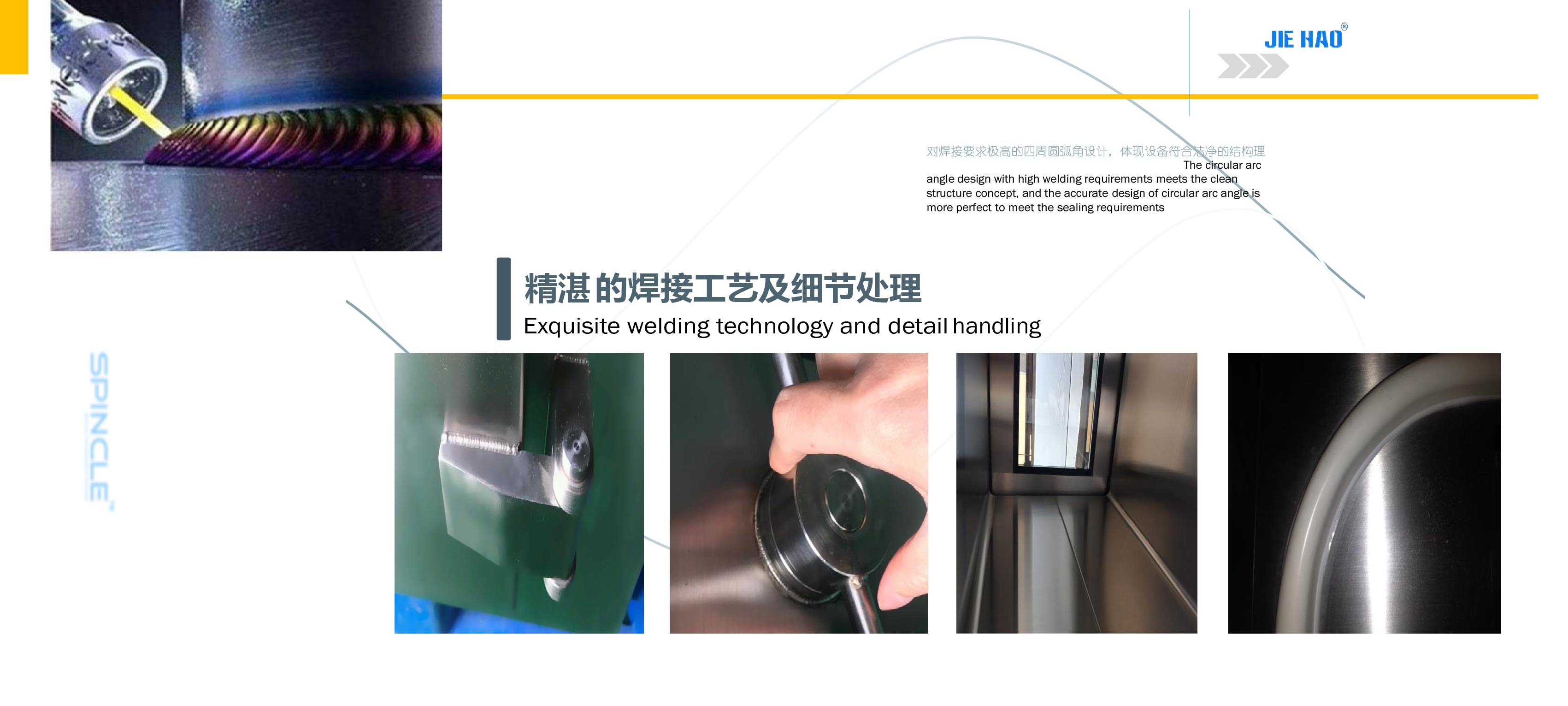

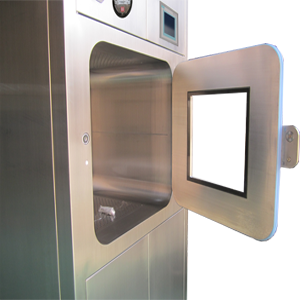

    The interior cavity is uniformly rounded at the corners to form a strict seal with the door, meeting the requirements for easy cleaning.


    Compression sealing strip

    Is installed on the door body and is made of high-elasticity rubber or silicone material, forming a close contact surface with the door frame.

    Corrosion Resistance: Made of high-quality stainless steel material, it has strong corrosion resistance and can withstand the erosion of disinfectants, cleaners, and chemical reagents such as acids and alkalis.



    Intelligent Control System: Equipped with Siemens PLC control methods, as well as various communication methods such as RS232, RS485, TCP/IP, to achieve intelligent operation.

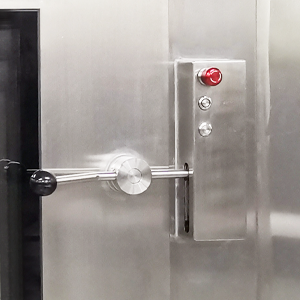

    Safety Interlock Mechanism: The electromagnetic lock interlock ensures that the double doors cannot be opened at the same time, enhancing safety during use.



    Customization Service: Provides customized services to meet the special needs of different customers, along with comprehensive after-sales service and technical support.

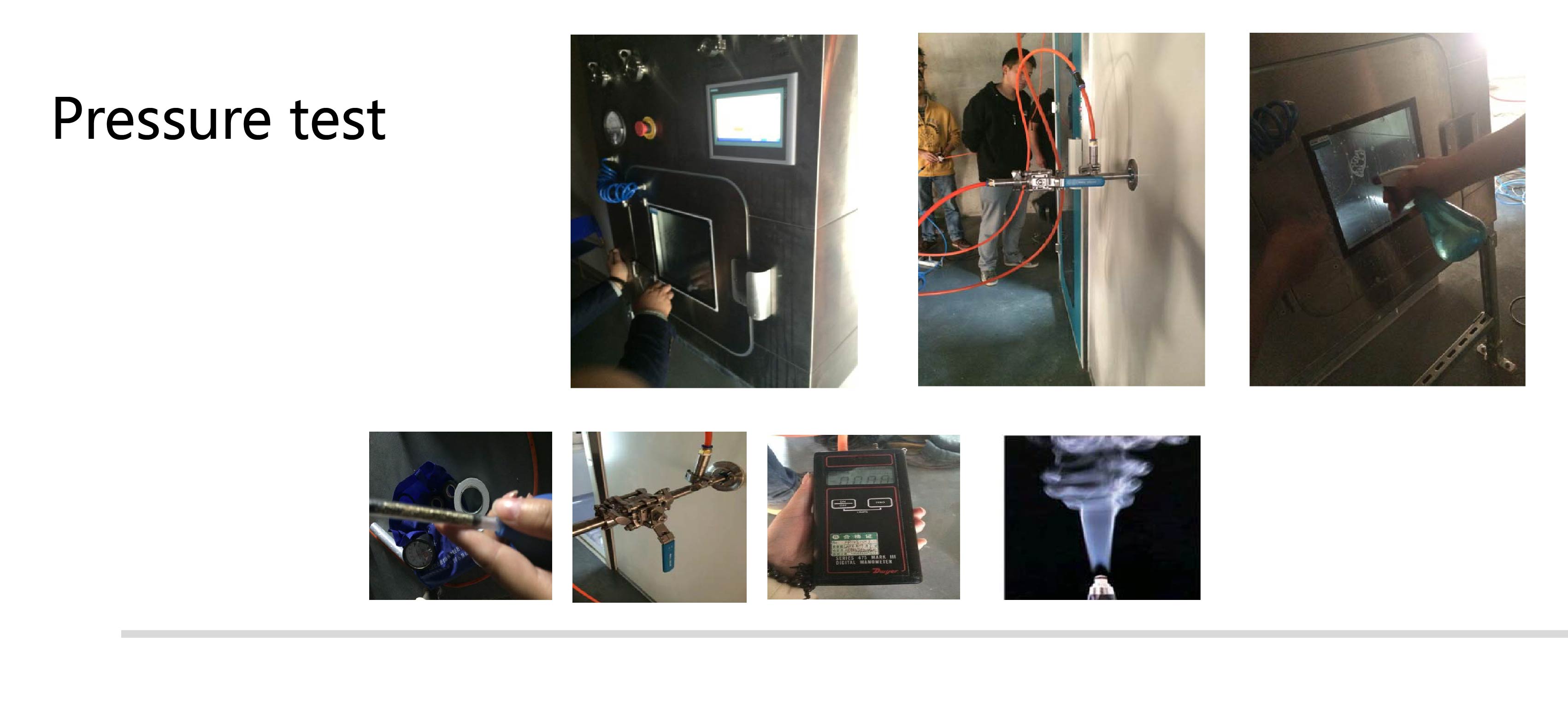

    Performance Parameters: The airtightness of the pass box can maintain a leakage rate of less than 50% for 20 minutes under a pressure of -500Pa, meeting national testing requirements.



    Validation Services: Provides a full set of validation documents, including DQ, IQ, OQ, FAT, SAT, and cooperates with validation.

ꂃ ꁹ


Model BS-02-ICPB-1 Installtion method Flush with the wall panel
Airtight method Sealing ring inflation barrier Control mode Siemens PLC
Communication mode RS232 RS485 TCP/IP Compressive strength ≥2500Pa
Corrosion resistance H2O2 sterilization,  formaldehyde  sterilization,  disinfectant Work environment -30℃+50℃
Open mode Physical buttons /HMI human-machine interface Locking method Electromagnetic lock interlock
Cabinet material 304 Cavity material 304/316
Sealing strip material Silicon rubber Intake medium Compressed air
Inflation pressure ≥0.25Mpa Action mode The electromagnetic valve
Pressure gauge interface RC1/8 Power Supply 220V 50Hz
Net weight 120KG Window Tempered glass
Door handle ￠15mm U-shaped Poit lamp Red closed state，green passage
Pressure monitoring Yes Self-cleaning function Yes
Sterilization interface Yes Error alarm Depression＜0.15Mpa
BMS system Accessible Inspection report Verifiction Report of the Third Party (National Inspection Center)
Validation Documentation 3Q documents 3Q documents Yes
After-sales service Yes Installation Services Additional quotations are required for different regions and countries



Biosafety inflatable airtight pass box parameter table
