Biosafety inflatable airtight door
Shanghai Jiehao Biotech is a leading manufacturer of Biosafety Airtight Doors, designed to provide the highest level of containment and security in critical environments such as healthcare facilities, pharmaceutical labs, biotech research centers, and food processing plants.Uses high-strength 304 profiles as the door frame, and the door edge adopts professional inflatable sealing technology to ensure that the door and the door frame are completely closed, thus effectively isolating the air flow inside and outside the laboratory.
| Model | BS-01-IAD-1 | Installtion method | Flush with the wall panel |
| Airtight method | Sealing ring inflation barrier | Control mode | Siemens PLC |
| Communication mode | RS232 RS485 TCP/IP | Compressive strength | ≥2500Pa |
| Corrosion resistance | H2O2 sterilization, formaldehyde sterilization, disinfectant | Work environment | -30℃+50℃ |
| Switching time | Inflatable≤5s Deflation≤5s | Open mode | Physics button/Infrared sensing /Combination lock |
| Locking method | Electromagnetic lock interlock | Doorframe material | 304/316 |
| Door leaf material | 304/316 | Filling material | Rock wool |
| Sealing strip material | Silicon rubber | Inlet medium | Compresssed air |
| Inflation pressure | ≥0.25Mpa | Action mode | The electromagnetic valve |
| Pressure interface gauge | RC1/8 | Power Supply | 220V 50Hz |
| Net weight | 120KG | Door closer | 80KG dormakaba |
| Window | Tempered glass | Door handle | ￠25mm U-shaped |
| Poit lamp | Red closed state，green passage | Escape device | Yes |
| Pressure monitoring | Yes | Error alarm | Low pressure＜0.15Mpa |
| BMS system | Accessible | Inspection report | Verifiction Report of the Third Party （National Inspection Center） |
| Validation Documentation | 3Q documents | Customized services | Yes |
| After-sales service | Yes | Installation Services | Additional quotations are required for different regions and countries |
Biosafety inflatable airtight door parameter table
Click to watch the video to learn more product information!
Key Features:
- Durability: Constructed with robust materials to ensure longevity in challenging conditions.
- Seamless Integrity: Advanced sealing technology guarantees an airtight barrier against contamination.
- Customization: Tailored to fit the unique dimensions and operational needs of various facilities.
- Regulatory Compliance: Meets international standards for biosafety, ensuring reliability and trust.
- User-Friendly Design: Ensures smooth operation to minimize contamination risks during transit.
Expertise:
Shanghai Jiehao Biotech combines decades of industry experience with a commitment to innovation, offering Biosafety Airtight Doors that set the standard for performance and safety.
Applications:
- Healthcare Sector: Protecting patients and staff in hospitals and medical labs.
- Pharmaceutical Industry: Securing the production and testing of life-saving medications.
- Biotechnology: Safeguarding sensitive research and development processes.
- Food Processing: Maintaining hygiene and quality in food manufacturing.
Commitment:
At Shanghai Jiehao Biotech, we are dedicated to delivering exceptional biosafety solutions that exceed customer expectations and contribute to a safer working environment.

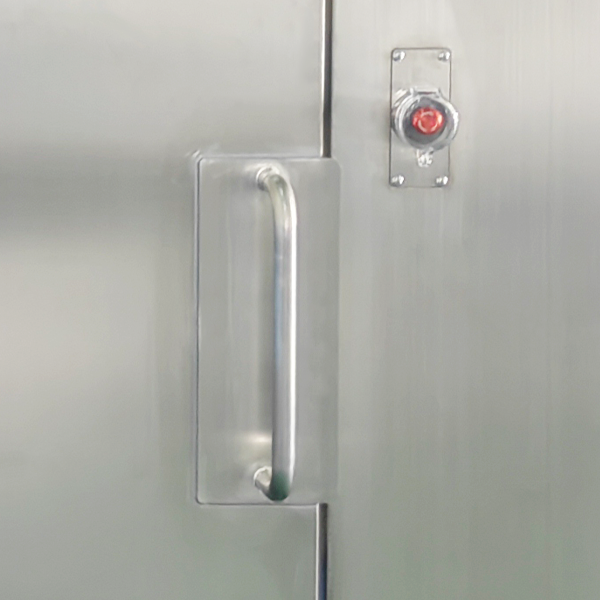

Stainless steel handle
Jiehao's inflatable door handles are designed to meet the criteria of durability, antibacterial properties, ease of cleaning, convenience of operation, safety, and compliance with standards.
Inflatable sealing strips are commonly made of high-density, corrosion-resistant materials such as silicone rubber, which can withstand the corrosion of disinfectants like formaldehyde, vaporized hydrogen peroxide, and gaseous chlorine dioxide .
Inflatale sealing strips

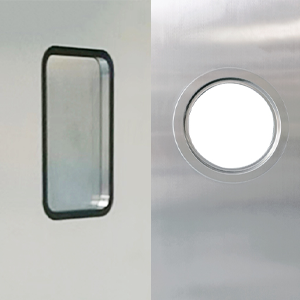

The viewport design of the air-sealed door complies with the requirements of biosafety laboratories and can be made into a circular shape or a right-angle shape.
Viewable Window
1. High level biosafety laboratories (such as BSL-3, BSL-4, ABSL-3, ABSL-4): These laboratories are typically used to study highly dangerous pathogens
Strict isolation and safety measures are required to prevent the leakage of pathogens.
2. In the field of hygiene and safety, such as disinfection rooms and isolation rooms, high airtightness is required to ensure disinfection and isolation effectiveness and prevent the spread of harmful biological factors.
3. Animal Biosafety Laboratories: These laboratories conduct research on infected animals and require special physical protection to prevent the spread of pathogens through aerosols or other means.
4. Cleanroom: In pharmaceutical factories or other environments that require high cleanliness, inflatable airtight doors can provide necessary sealing to prevent the entry of pollutants.
5. Isolators and glove boxes: used in conjunction with biosafety protection equipment to form a complete biosafety protection system.
Application scope

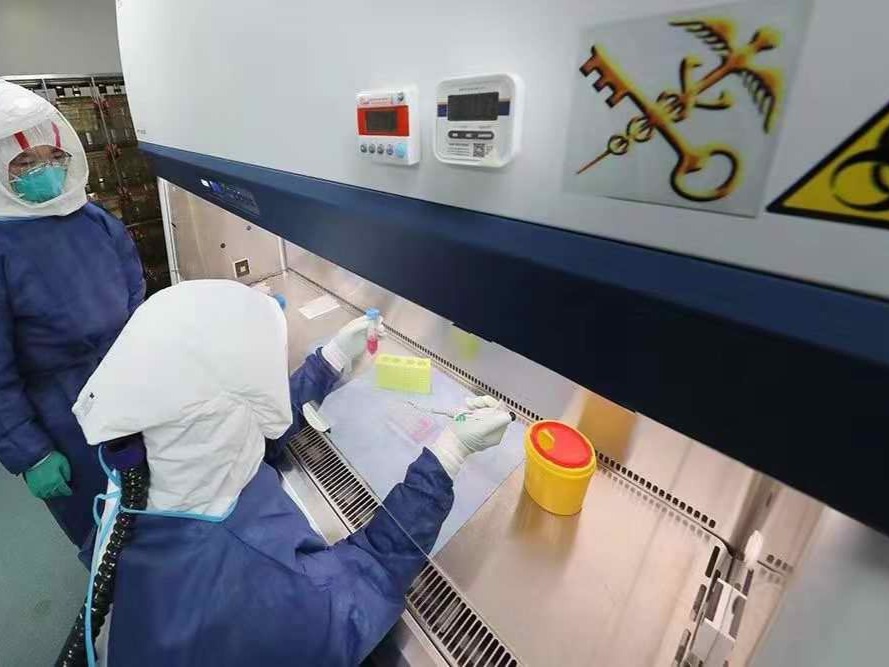

BSL4 Biosafety Laboratory

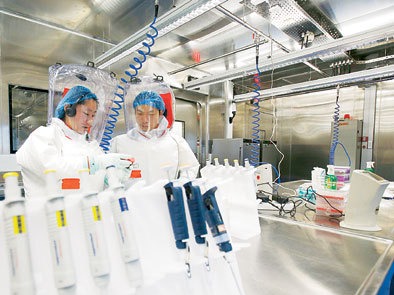

BSL3 Biosafety Laboratory
ABSL3 Large Animal Biosafety Laboratory
