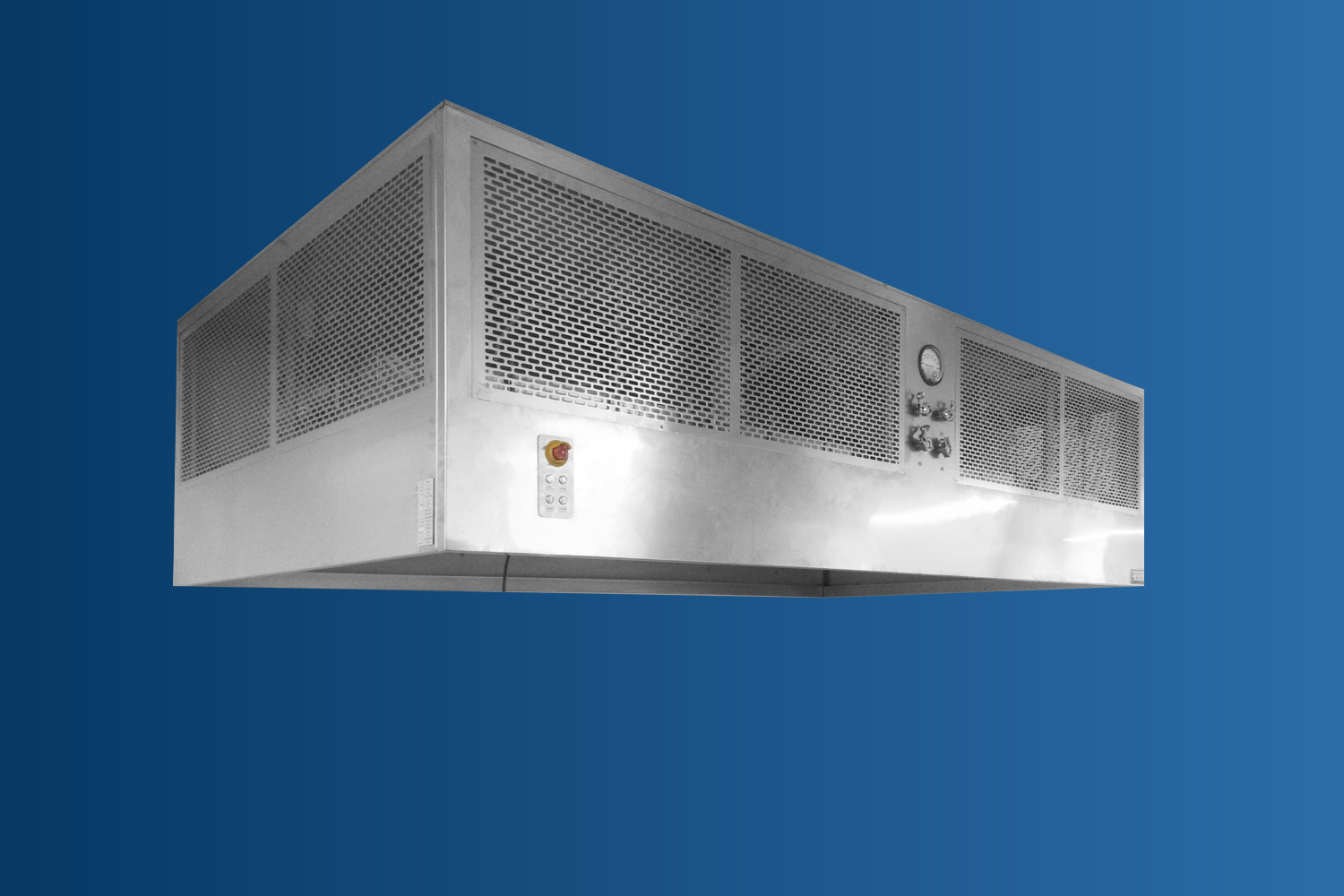

Laminar flow hood
Ensuring the cleanliness of production and experimental environments is crucial in the biotechnology and pharmaceutical industries. The laminar flow hood provided by JIEHAO Company is an efficient air purification device, specifically designed to achieve this goal. By adopting advanced HEPA filtration technology, our laminar flow hood can provide ISO 5 class unidirectional airflow to key areas, effectively preventing product contamination and ensuring high standards and quality in the production process.

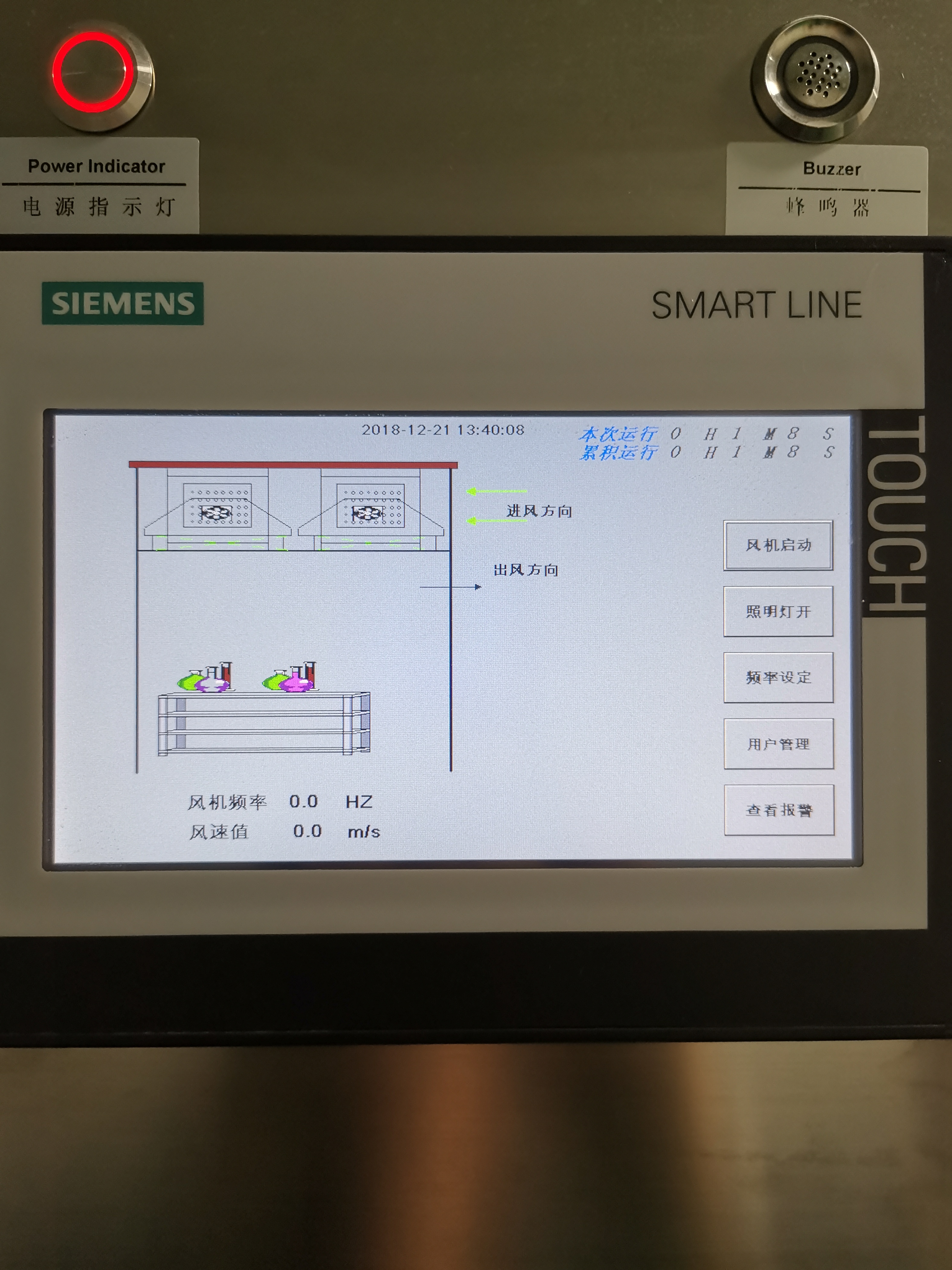

HMI human machine interface

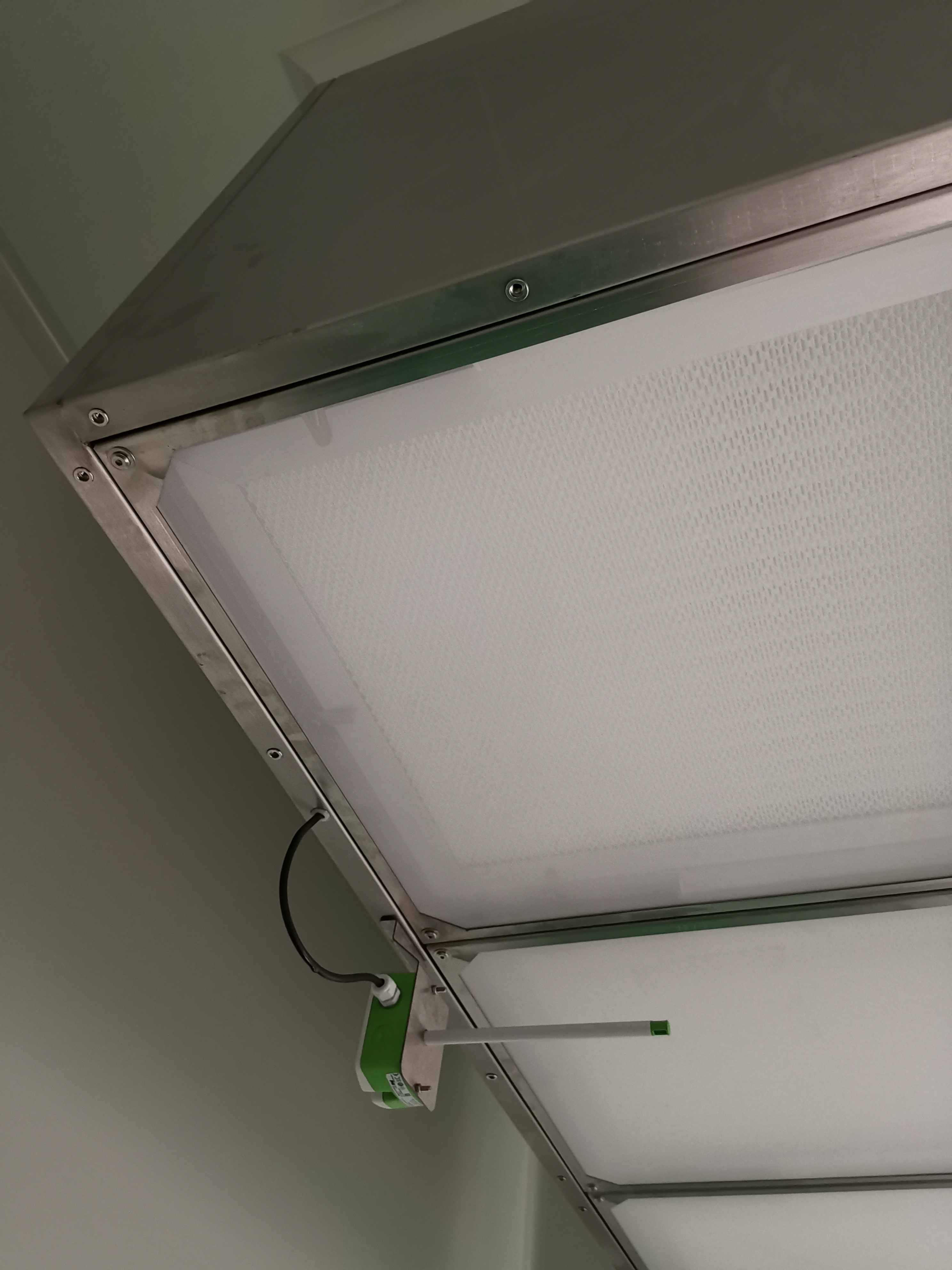

Wind speed sensor

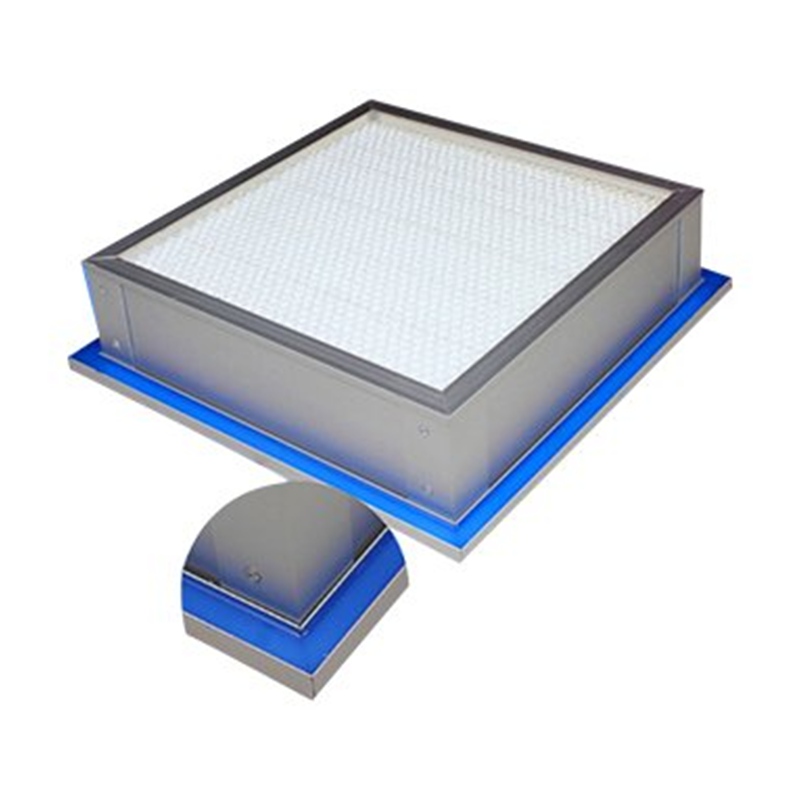

Liquid tank type high efficiency
The working principle of the laminar flow hood is through the fan installed in the top pressurized compartment, which causes the air to pass through the high-efficiency filter and vertically through the operating area, forming a uniform airflow layer and providing a sterile core environment for the working area. This design is not only suitable for new construction projects but also for renovation projects, meeting the needs of different customers. With its high efficiency, easy maintenance, and energy-saving features, the JIEHAO laminar flow hood has become the ideal choice for biosafety laboratories and clean rooms.
Device Functions and Applications:
- Air Purification: Using HEPA filter technology, the JIEHAO laminar flow hood provides the essential ISO 5 class cleanliness for sterile operations.
- Preventing Product Contamination: By isolating operators from products, cross-contamination is reduced, ensuring product quality.

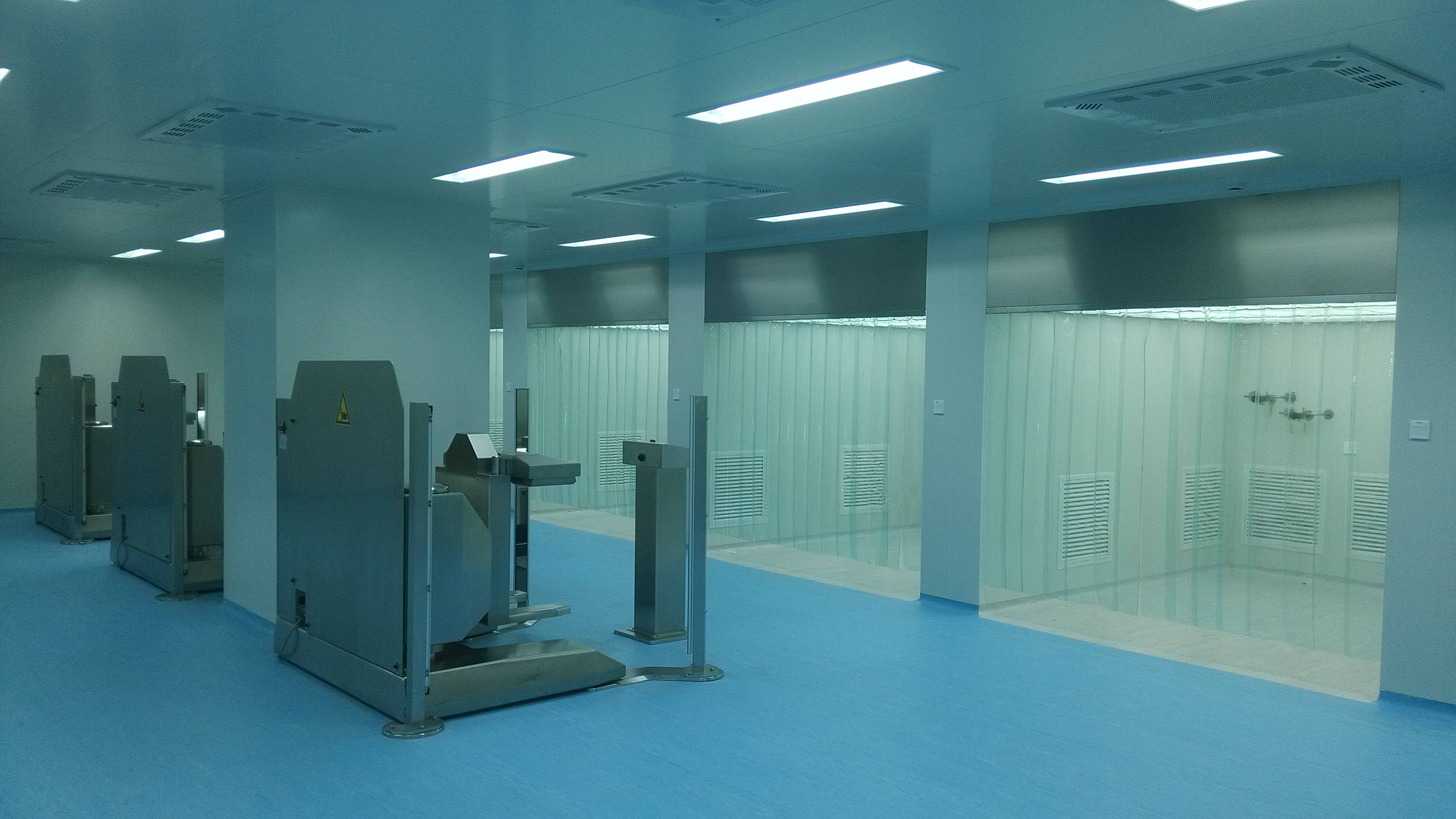

- Wide Applicability: Suitable for newly built or renovated biosafety laboratories, pharmaceutical production lines, etc., meeting the diverse needs of clean environment requirements.
Working Principle:

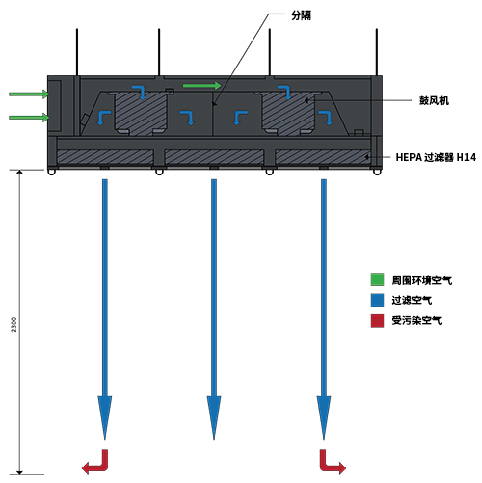

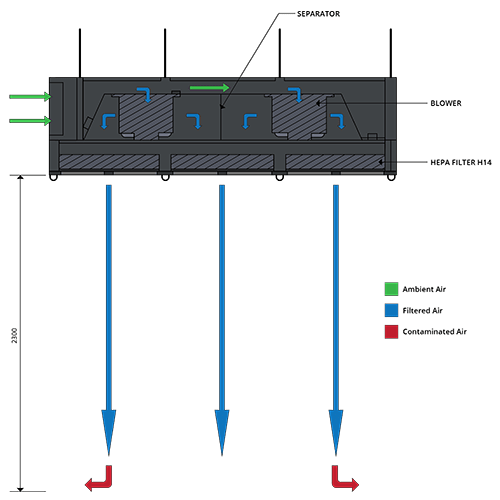

- Vertical Laminar Flow: The fan in the top pressurized compartment pushes the air vertically downward, forming a stable unidirectional flow.
- High-Efficiency Filtration: The removal efficiency of particles 0.3 microns and above exceeds 99.995%, ensuring a high degree of cleanliness.
- Uniform Airflow Formation: The damper layer design makes the airflow uniform, ensuring a sterile environment in the working area.
Device Features:
- High-Efficiency Performance: Provides continuous and consistent clean airflow for experiments and production.
- Easy Maintenance: The simple design reduces the difficulty of daily cleaning and maintenance.
- Energy-Saving Design: Efficient motors and optimized airflow design reduce energy consumption.
- Flexibility: Can be used independently or in combination to adapt to different space requirements.
- Durability: High-quality materials ensure long-term stable operation.
Technical Parameters:
- Purification Level: ISO 5 class, in line with the Class 100 of the U.S. Federal Standard 209E.
- Average Wind Speed: 0.35—0.54m/s, adjustable to meet different needs.
- Noise Level: Below 65dB(A), ensuring a comfortable working environment.
- Power Requirements: 220V 50HZ, suitable for most laboratory power supplies.
Installation and Operation:
- Installation Methods: Provides options for suspended installation and floor-standing bracket installation.
- Easy Operation: Intuitive user interface, easy to monitor the equipment status.
After-Sales Service:
- Technical Support: Provides professional consultation and solutions.
- Maintenance Services: Regular maintenance and rapid response repair services.
