Biosafety mechanical pass box

Biosafety mechanical pass box is an auxiliary equipment to reduce clean room pollution, mainly used for the transfer of small items between different clean areas. Its double doors are mechanically pressed to ensure air tightness. There is a high elastic sealing ring on the door panel of the transfer window, and a sealing band is formed between the door and the door frame.

Contact us

  • Professionalism and Safety: Jiehao Bio's mechanical compression sealing pass box plays a crucial role in preventing cross-contamination between areas of different cleanliness levels. Its design complies with the "Biosafety Laboratory Construction Technical Specification" GB 50346-2011, ensuring the effectiveness of the primary and secondary barriers in biosafety laboratories.

    Product Features: Jiehao Bio's pass box adopts a mechanical compression sealing method and is designed with a VHP disinfection interface, among other features. It can be connected to a hydrogen peroxide disinfection machine for sterilization of items inside the chamber, meeting the requirements for airtightness and disinfection in high-level biosafety laboratories. Its performance parameters, such as pressure resistance and airtightness, are at the leading level in the industry.

    Performance Parameters: The pass box's airtightness can maintain a leakage rate of less than 20% under a pressure of -500Pa for one hour, meeting the national pressure testing requirements.

    Product advantages

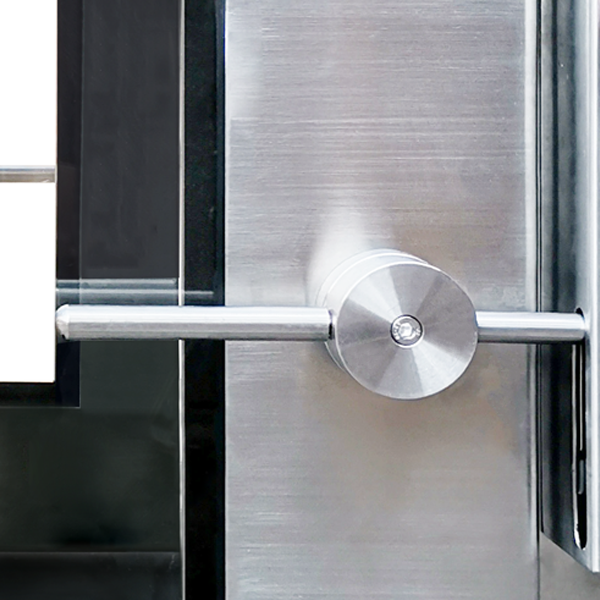

  • Mechanical handle

    •

    Jiehao independently developed a rotating handle suitable for mechanical compression doors

    Compression sealing strip

    Is installed on the door body and is made of high-elasticity rubber or silicone material, forming a close contact surface with the door frame.

    Application Fields: The pass box is widely used in fields such as micro-technology, biological laboratories, pharmaceutical factories, and hospitals.

    Operation and Maintenance: Detailed operating procedures and maintenance information are provided. This ensures that users can operate and maintain the equipment correctly, extending its service life and maintaining optimal performance.

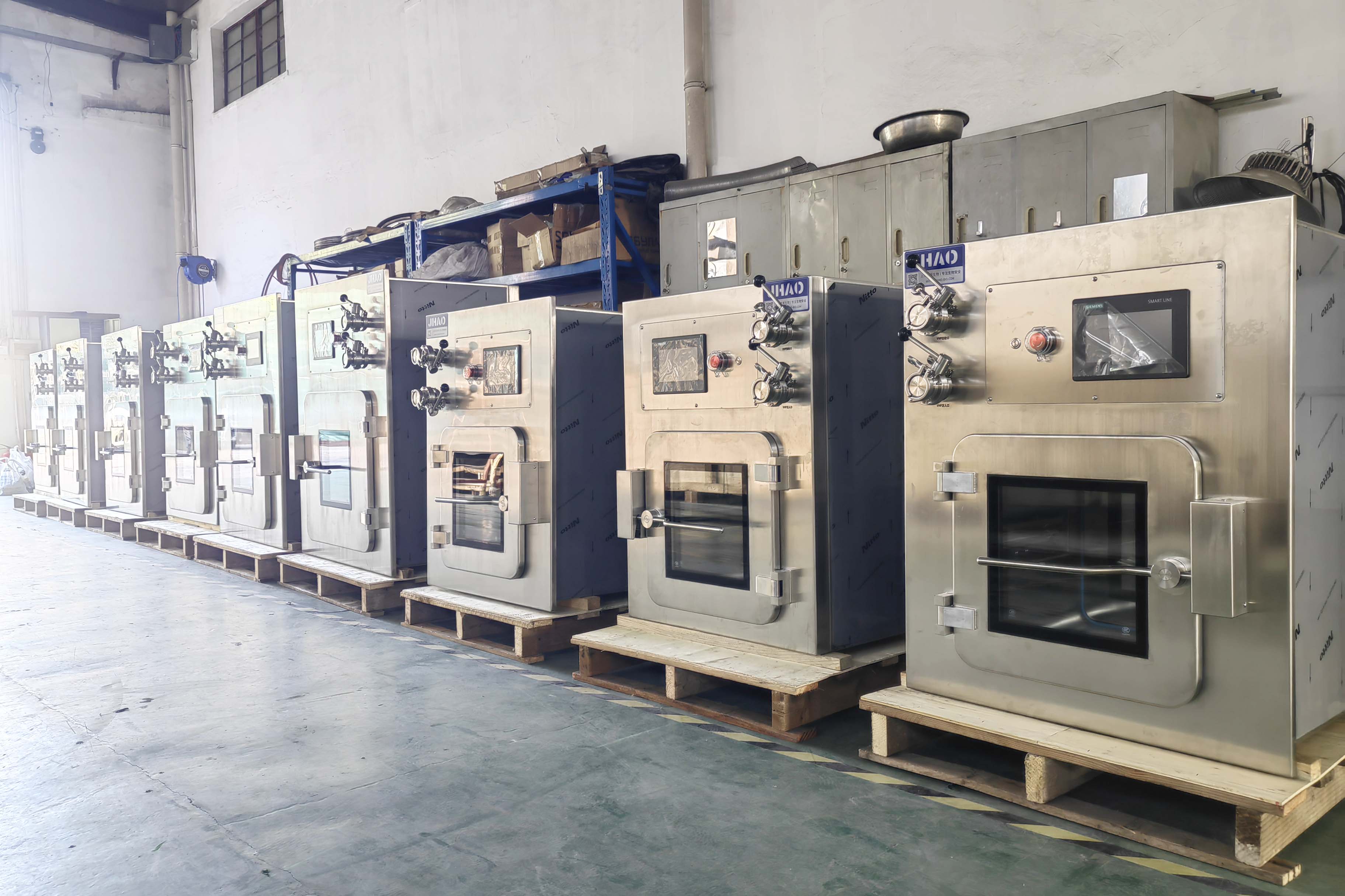

    Validation Services: A complete set of validation documents is provided, including DQ, IQ, OQ, FAT, SAT, and we will cooperate with the validation process.

ꂃ ꁹ


Model BS-02-MPB-1 Installtion method Flush with the wall panel
Installtion method Sealing strip compression barrier Control mode Siemens PLC
Communication mode RS232 RS485 TCP/IP Compressive strength ≥2500Pa
Corrosion resistance H2O2 sterilization,  formaldehyde  sterilization,  disinfectant Work environment -30℃+50℃
Open mode Physical buttons /HMI human-machine interface Locking method Electric plug lock interlock
Cabinet material 304 Cavity material 304/316
Sealing strip material Silicon rubber Power Supply 220V 50Hz
Net weight 150KG Window Tempered glass
Door handle ￠15mm Crank handle Poit lamp Red closed state，green passage
Self-cleaning function Yes Sterilization interface Yes
BMS system Accessible Inspection report Verifiction Report of the Third Party （National Inspection Center）
Validation Documentation 3Q documents Customized services Yes
After-sales service Yes Installation Services Additional quotations are required for different regions and countries



Biosafety machnical pass box parameter table

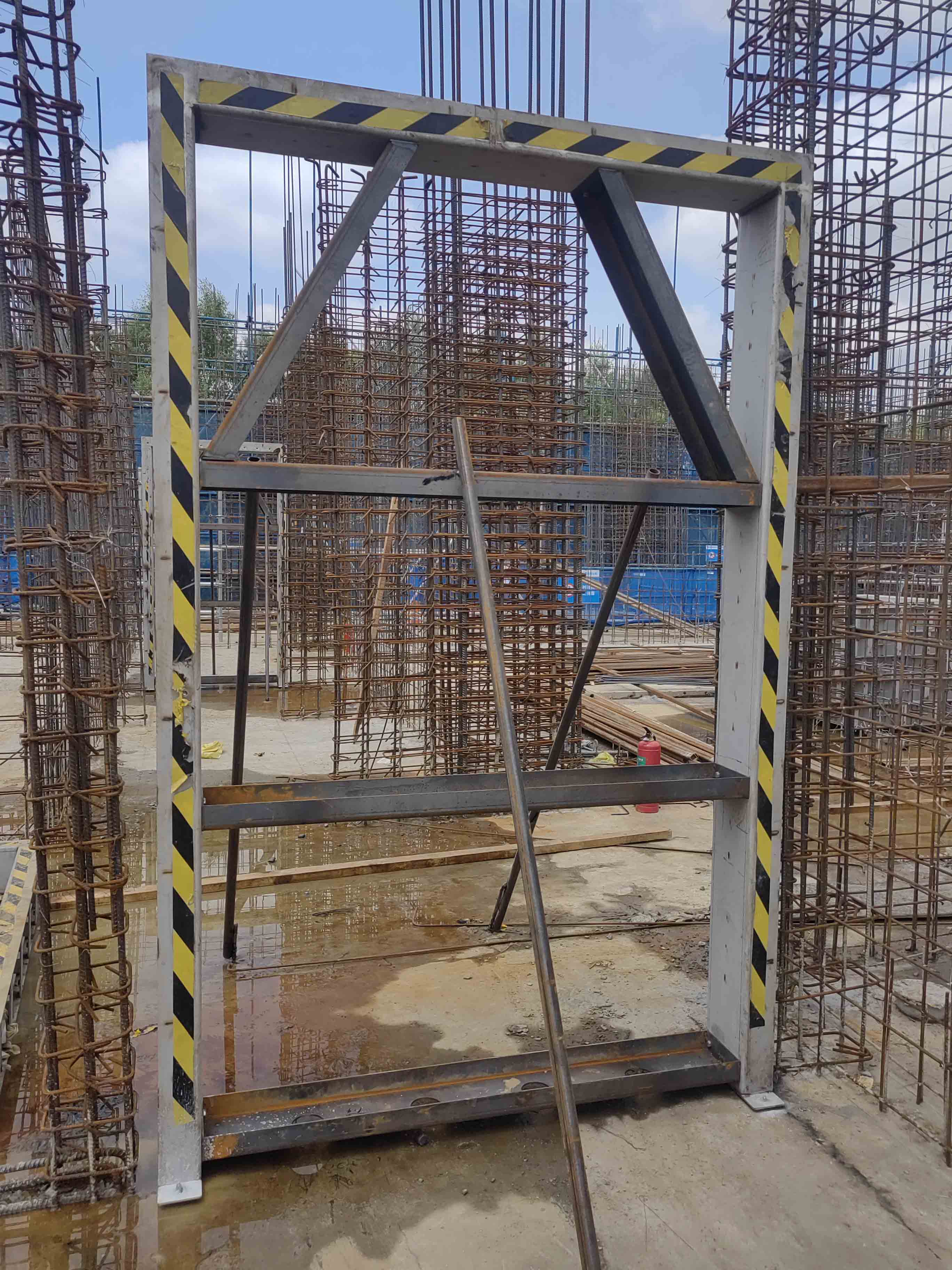

Shanghai Jiehao Biotechnology Co., Ltd. provided a series of biosafety products that passed the pressure test for the Institute of Animal Research. The professionalism and innovation ability of Shanghai Jiehao Biotechnology Co., Ltd. in the field of biosafety are reflected, and the application of its products in biological laboratories and related fields demonstrates its leading position in the industry.
