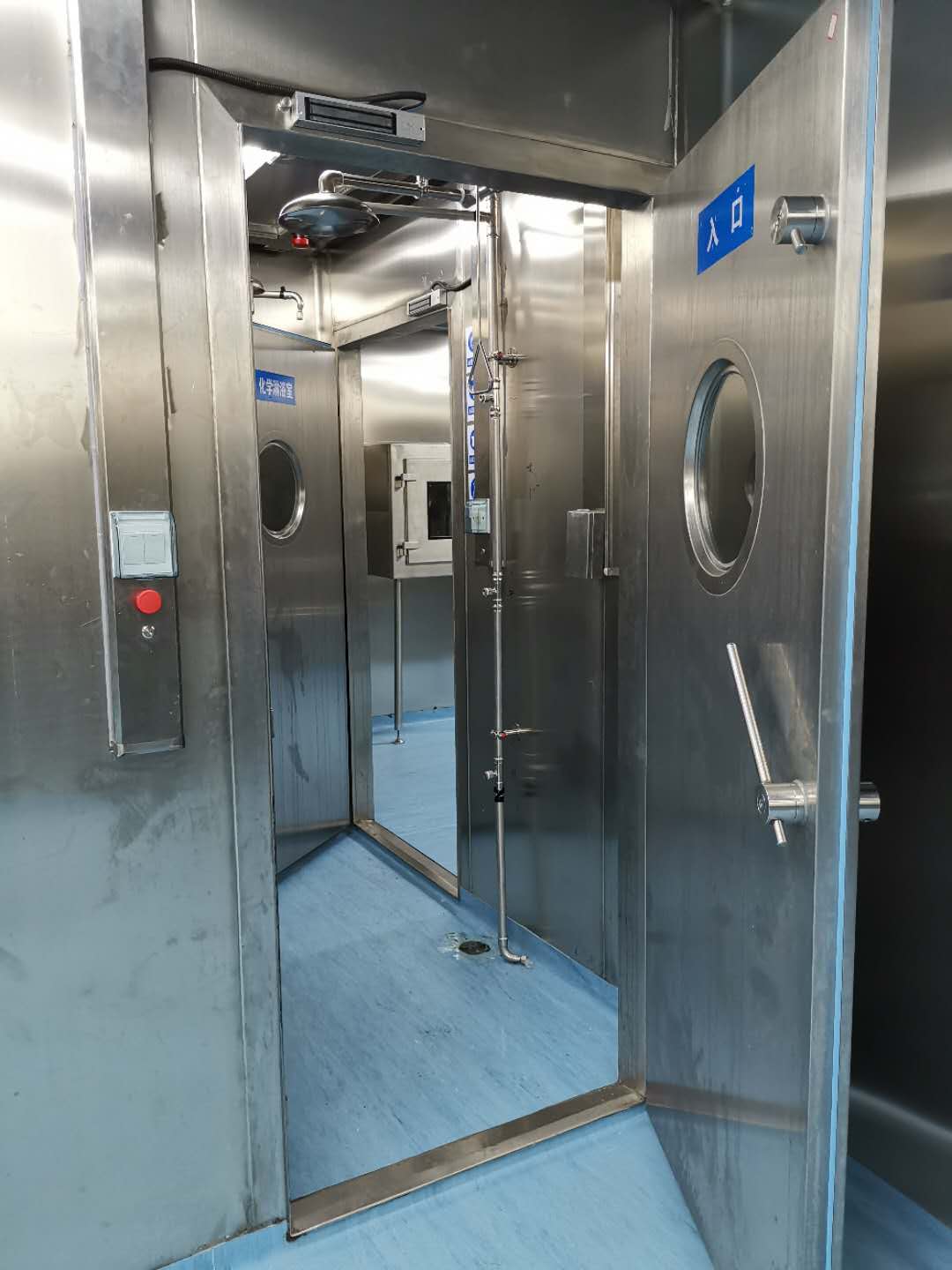

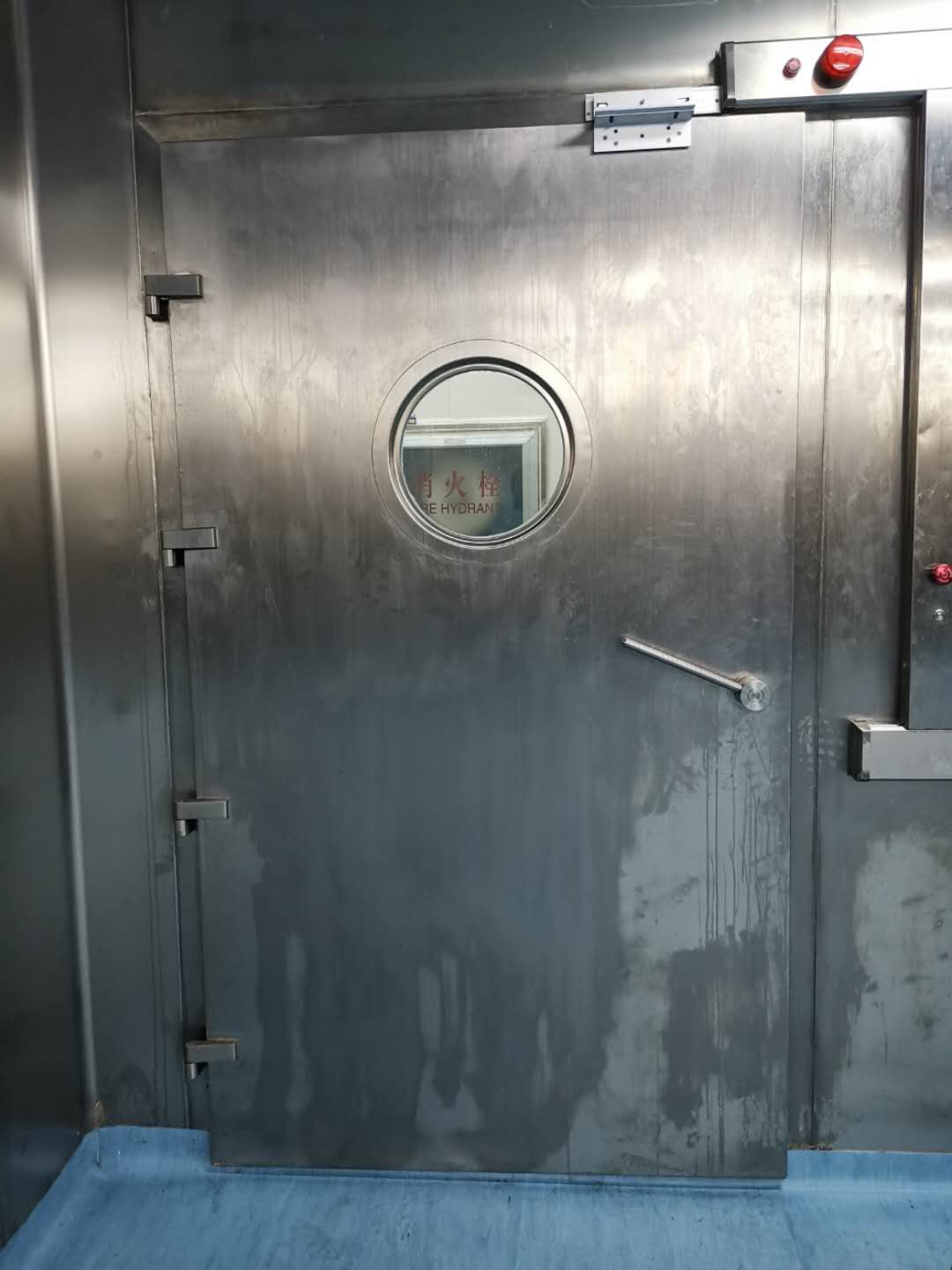

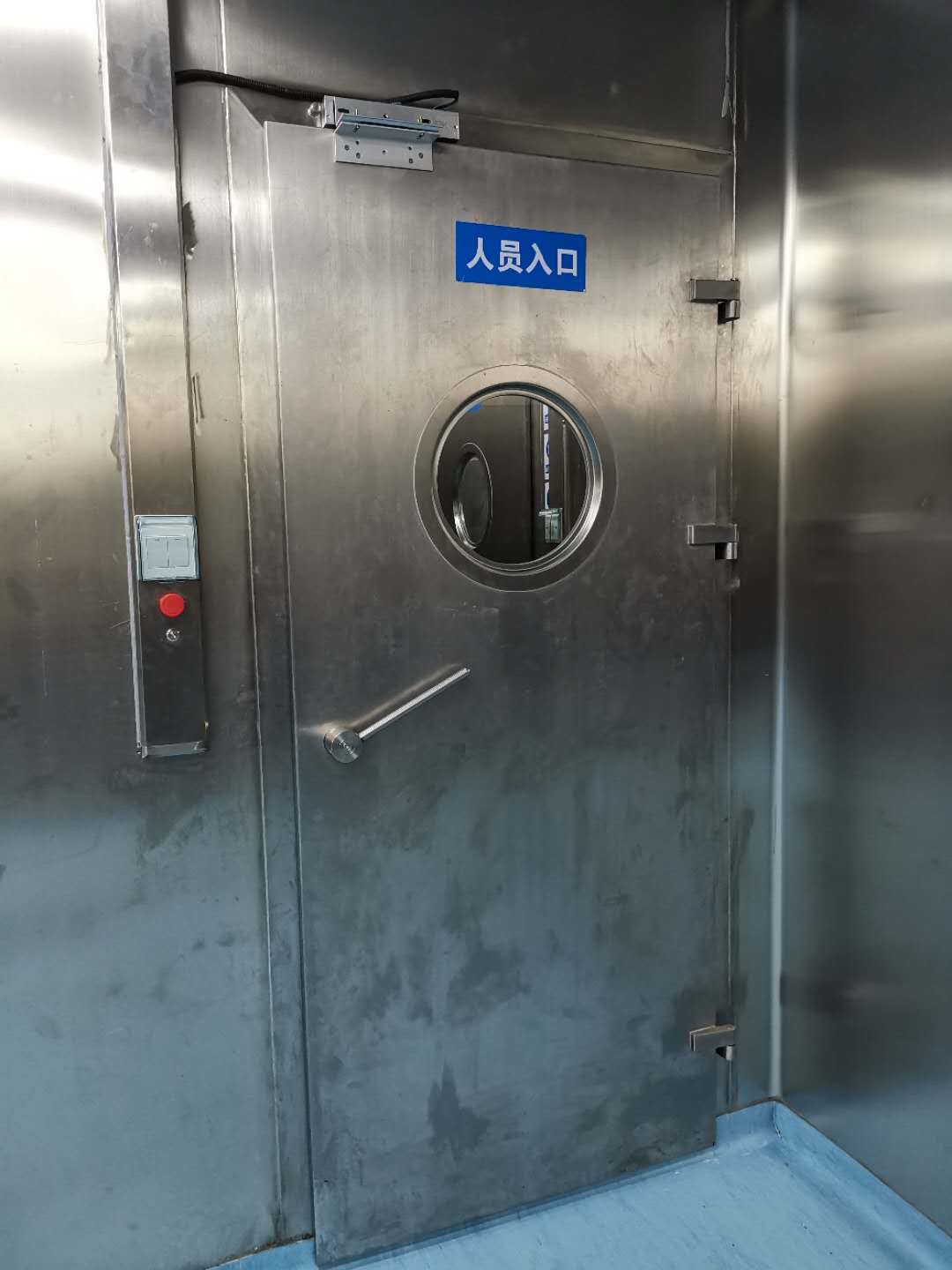

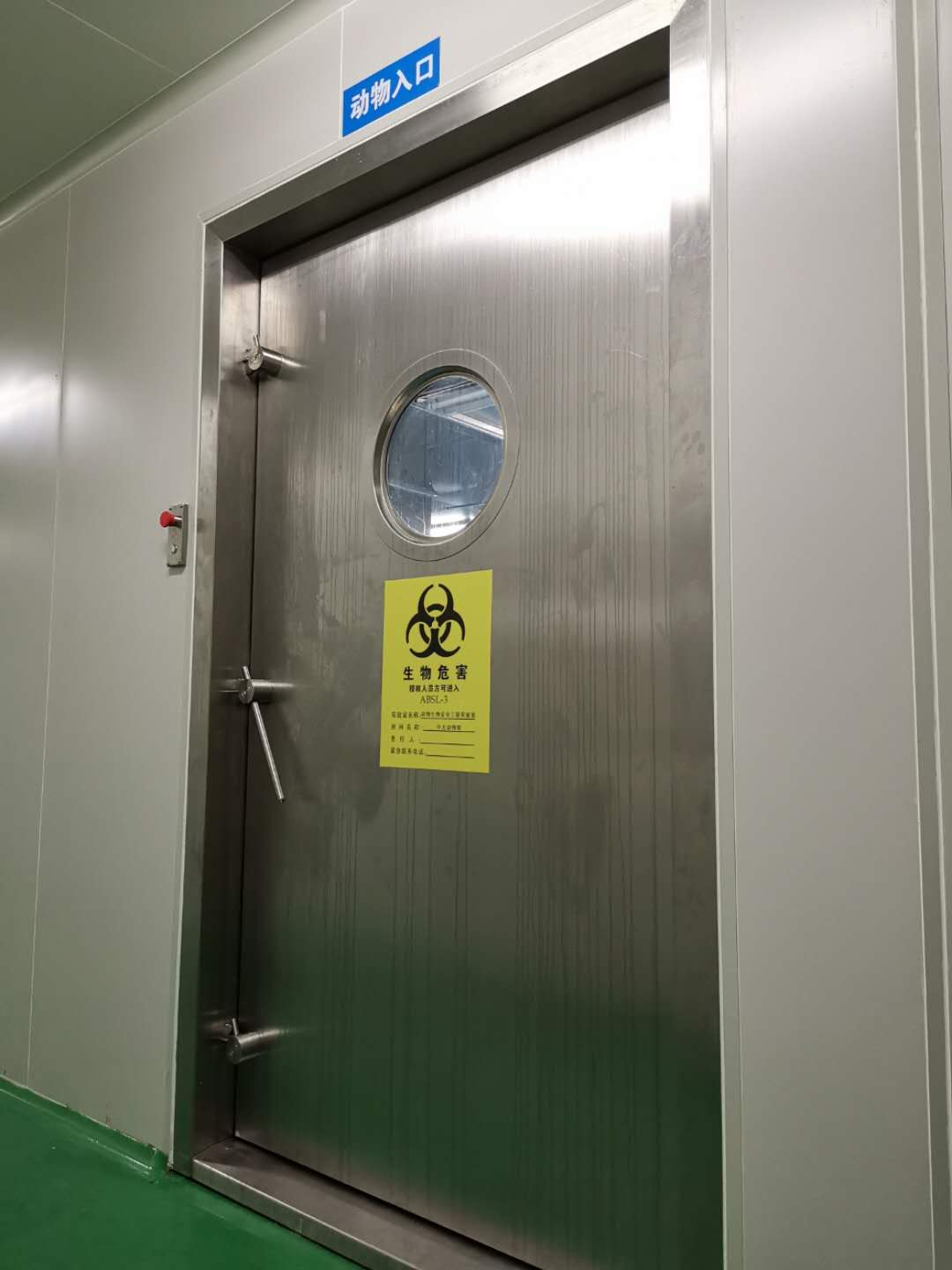

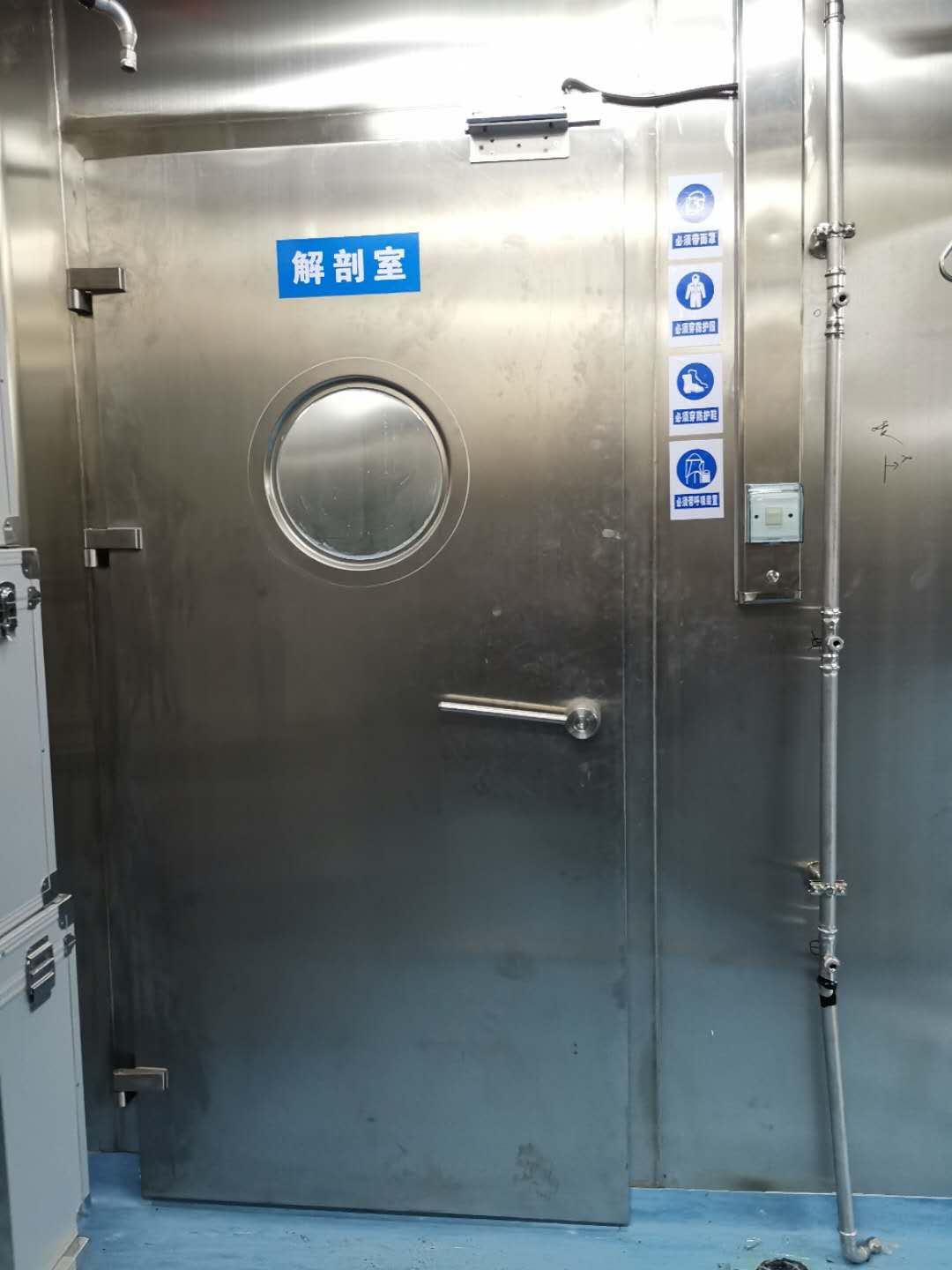

Biosafety mechanical seal door

Shanghai Jiehao Biotechnology Co., Ltd. focuses on the field of biosafety, offering a range of high-standard mechanical airtight doors specifically designed to meet the needs of biosafety laboratories, medical facilities, and the pharmaceutical industry. Our mechanical airtight doors utilize advanced mechanical compression technology to ensure a strict seal between the door and the door frame, effectively preventing the escape of harmful biological factors and cross-contamination.

Contact us
  • 1. Full Seal Structure Design: Achieving a strict seal between the door body and the door frame through mechanical compression technology.

    2. Sealing Pressure Monitoring: Real-time monitoring of the door's sealing status to adapt to different pressure environments.

    3. Supply Air Pressure Monitoring: Ensuring the accurate inflation of the inflatable sealing strip when needed to maintain airtightness.

    4. Custom-Made Airtight Door Hinges: Enhancing the structural stability of the door body to improve durability and reliability.

    5. Independent PLC Control: Using Siemens PLC control system to provide intelligent operation.

    6. Configurable Buttons and LED Indicators: Configured according to user needs, providing intuitive operation and status indication.

    7. Visual Windows Available: Installing circular or square tempered glass windows for easy observation of the interior.

    8. BMS System Integration Capability: Capable of integrating with building management systems for remote monitoring and automated control.

    9. Customized Services: Providing customized design and manufacturing services according to customer requirements.

    10. After-Sales Service: Offering comprehensive after-sales service to ensure customers receive timely support and assistance.


    Scope of application

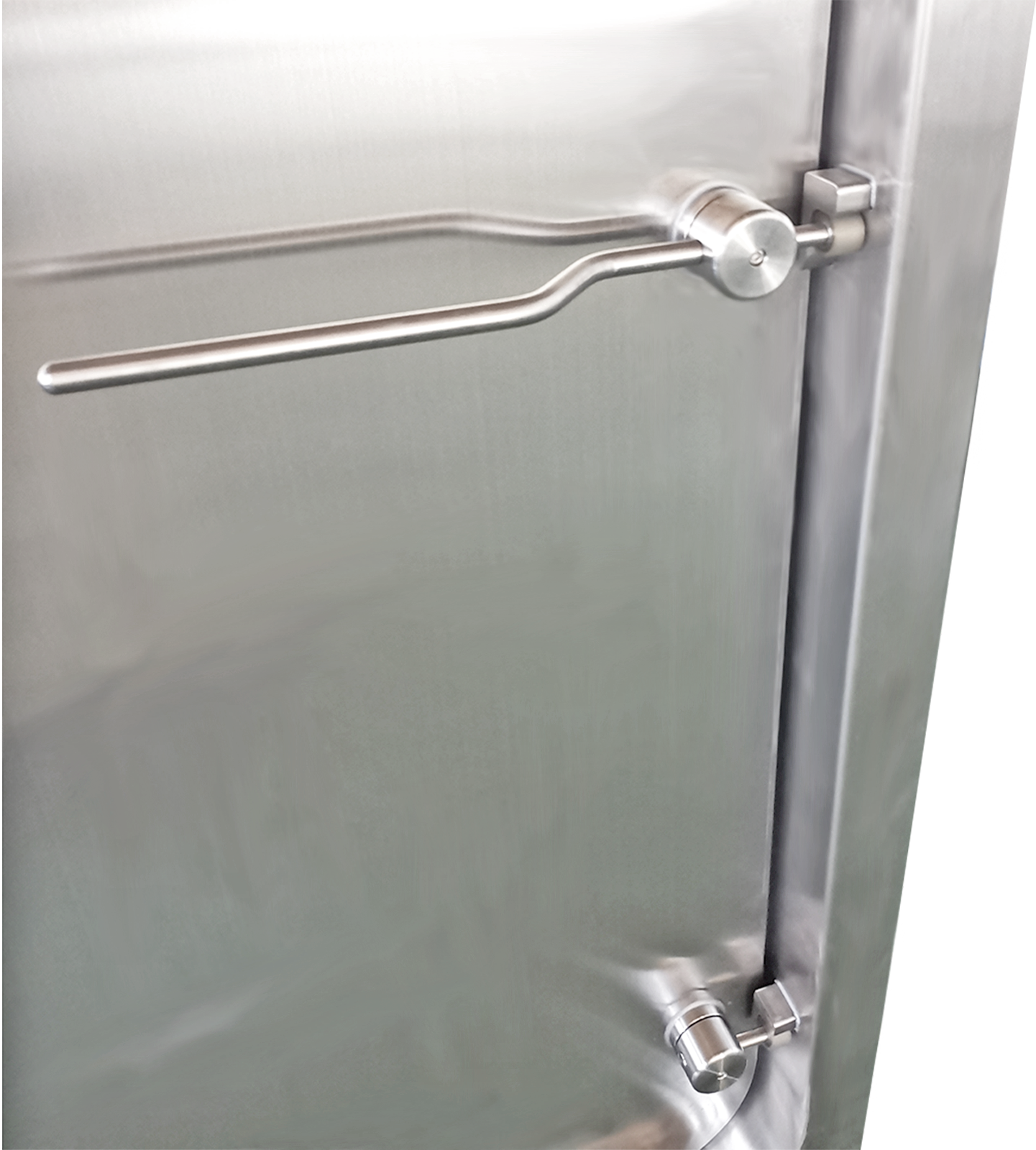

  • Mechanical handle

    •

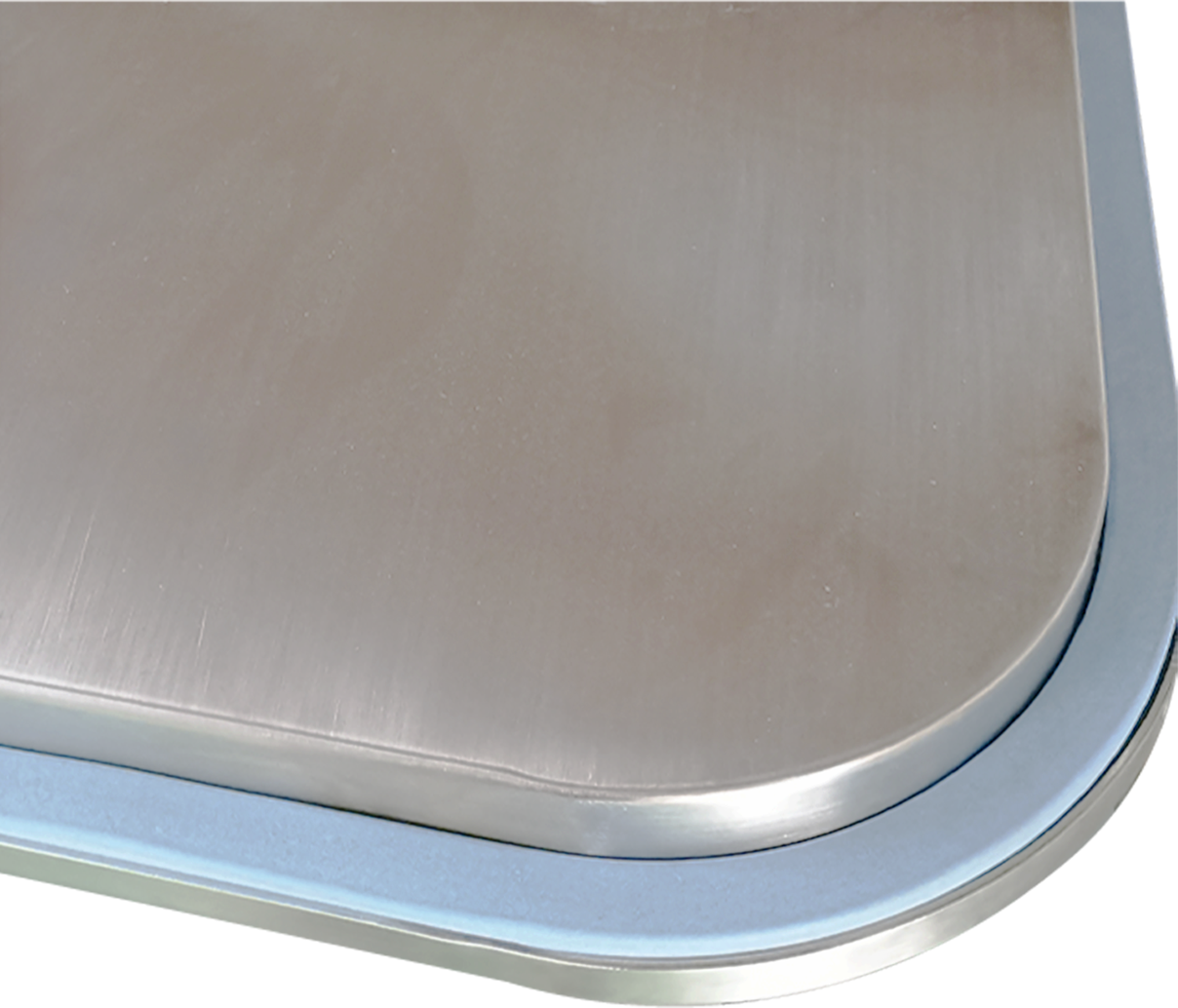

    Compression sealing strip



Model BS-01-MSD-1 Installtion method Flush with the wall panel
Airtight method Sealing strip compression barrier Control mode Siemens PLC
Communication mode RS232 RS485 TCP/IP Compressive strength ≥2500Pa
Corrosion resistance H2O2 sterilization,  formaldehyde  sterilization,  disinfectant Work environment -30℃+50℃
Open mode Physics button/Infrared sensing /Combination lock Locking method Electric plug lock interlock
Doorframe material 304/316 Door leaf material 304/316
Filling material Rock wool Sealing strip material Silicon rubber
Power Supply 220V 50Hz Net weight 150KG
Door closer 120KG  dormakaba Window Tempered glass
Door handle ¢15mm Crank handle Poit lamp Red closed state,green passage
Escape device Yes BMS system Accessible
Inspection report Verifiction Report of the Third Party (National Inspection Center) Validation Documentation 3Q documents
Customized services Yes After-sales service Yes
Installation Services Additional quotations are required for different regions and countries



Biosafety mechanical seal door parmeter table
