Cleanroom door
Cleanroom door raw material selection is stainless steel, resistant to air, steam, water and other weak corrosive media and acid, alkali, salt and other chemical corrosive media corrosion of steel. In the actual production and use of the process, the cleanroom door has a smooth, high strength, beautiful, durable, acid and alkali resistance to these characteristics, easy to install, in use, there will be no residual paint and other flavors, high strength, durability and deformation.
| Part Name | Specifications | Remarks |
| Door Frame | 1.2 mm304 stainless steel | With protection touch, color uniformity thickness optional 1.5 |
| Door panel | 1.0 mm304 stainless steel | With protective film, uniform color |
| Lock | Stainless steel handle lock | Standard, three-year warranty |
| Window glass | 5mm thick tempered glass |
Lined with 304, stainless steel liner specifications 386 * 586 R101R |
| Closer | Nickel-plated | Standard, optionally positioned and non-positioned |
| Hinge | 304 stainless steel | Standard, one door hinge, three hinges |
| Elevating and sweeping strip | Aluminum alloy+silicone leather strip | Good elasticity, permanent |
| Door sealing strip | Polyurethane two-component | Anti-aging for 20 years |
| paper honeycomb | Thickness 48mm | Flame retardant, optional aluminum honeycomb, rock wool |
| Glass glue | Silicone | Standard |
| High-temperature-resistant glue | Polyether, Polyisocyanate | High temperature resistance up to 300 degrees Celsius |
| Mounting screws | Hexagon socket self-drilling screws | Easy to install |
| Decorative cover | Pplastic | Flat, Beautiful |
| Color | Polyester resin plastic powder | Color of your choice outdoor powder, outdoor ten years does not change color, VHP, antibacterial |
Cleanroom door parameter table
Product advantages
Reasonable structure with good airtightness
Cleanroom door plate is firm and reliable, the gap around the use of tight silicone processing, the bottom of the door can be installed automatic lift sweep strip, reduce the friction on the ground, the noise is small sound insulation performance is good, you can protect the cleanliness of the indoor space.
Impact resistant and durable hardness
Relative to wooden doors using cleanroom door will be more environmentally friendly, because the cleanroom door filling with paper honeycomb or aluminum honeycomb. The structure of the honeycomb core so that it has good heat insulation, sound insulation, heat corrosion, thermal insulation effect, stainless steel panel is more durable and not easy to deform, impact resistance is not easy to dent paint, antibacterial inhibition of mildew, the use of good results, the use of a long period of time.
Fire and moisture resistant and easy to clean
Cleanroom door has strong moisture resistance and has certain fireproof performance. The surface is smooth and flat, clean without dead ends, no accumulation of dust, difficult to clean the pollutants, can be cleaned directly with detergents, easy to disinfect and clean, in line with the requirements of health and cleanliness, overall performance is good.
Corrosion-resistant and not easily deformed
Traditional doors are prone to deformation of the door body due to climate change, frequent switching and impact. The material of cleanroom door is highly resistant to abrasion, acid and alkali corrosion, with high strength, not easy to deform, to protect the stability of the clean door.
Raw materials are environmentally friendly and healthy
Cleanroom door raw materials in the installation of the use of health and environmental protection, and the price is relatively affordable, access to the favor of many customers, the use of safe and secure. Cleanroom door is indispensable to the workshop and factory door products, buy cleanroom door when you need to choose a professional and guaranteed manufacturers.

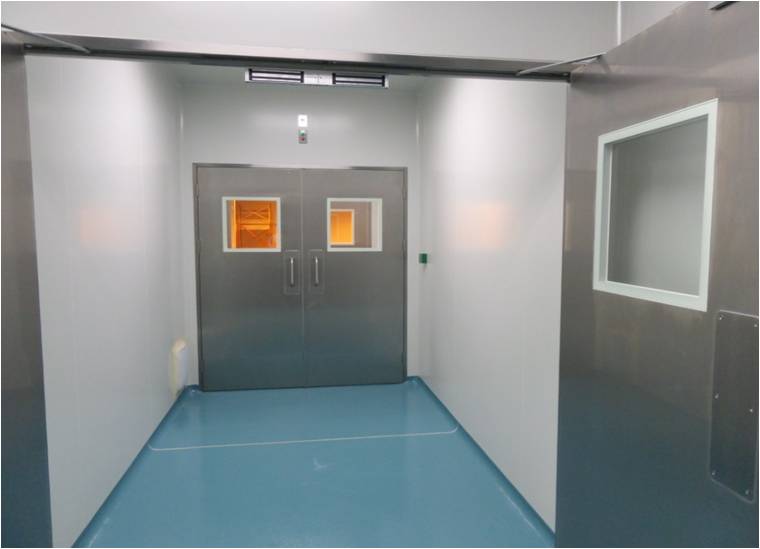

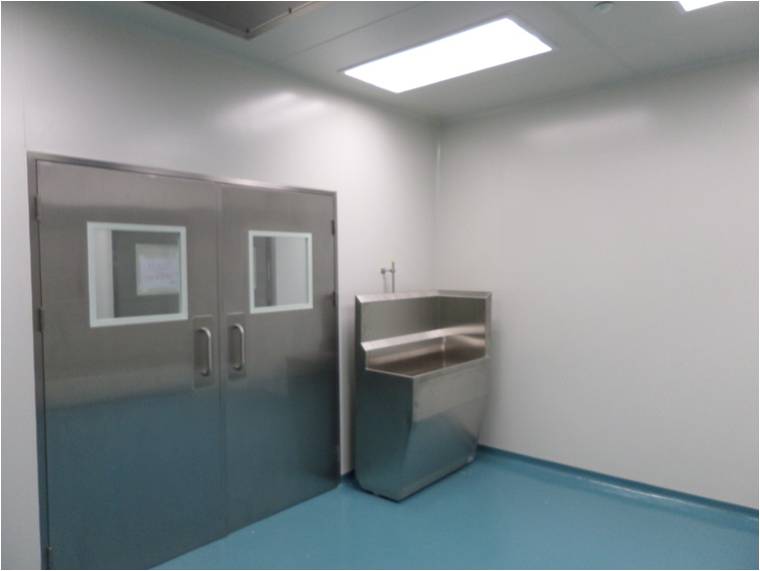

Project Address: Zhangjiang High tech Park, Shanghai
Project Name: Pfizer China R&D Center
Product Name: 316L Cleanroom Stainless Steel Door
