UV pass box
UV transfer hatch, also known as ultraviolet light pass through chamer. It is commonly used in the transfer of goods between the cleanroom and the cleanroom or between the cleanroom and the non-clean area. Through the installation of ultraviolet lamps for bacteria, the pass box has a two-door interlocking function, always keep one side of the door is closed in any state, thus minimising cross contamination between clean areas.
It is widely used in the cleanroom and purification workshop of medicine, health, electronics, chemical industry, food processing and other industries, such as ultra-clean plant or air purification engineering system in the fields of biomedicine, microelectronics, precision machinery, aerospace and scientific research and teaching.
Scope of application

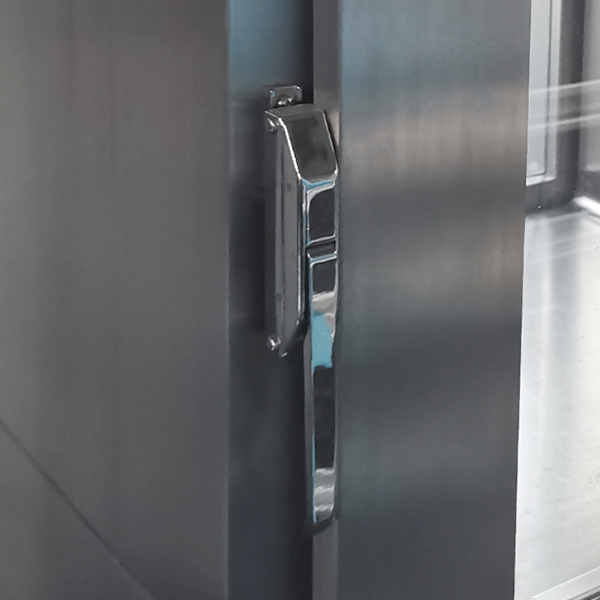

Mechanical handle

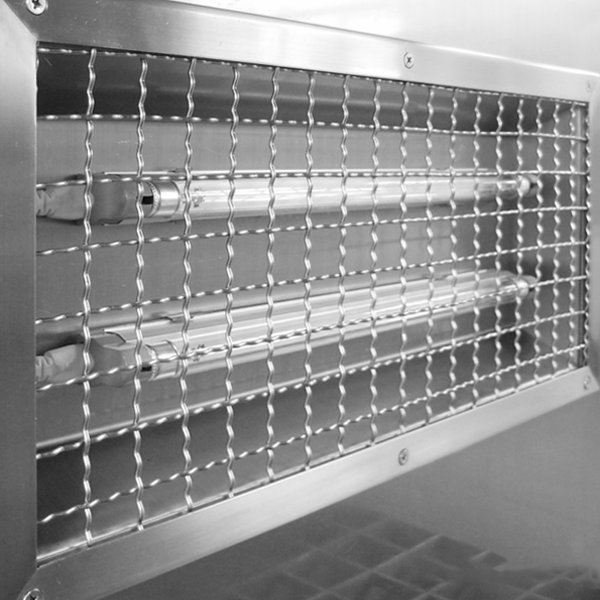

UV light
The ultraviolet lamp is embedded in the cavity and is surface mounted with a wire mesh. The advantage is that the surface is flush with the interior of the cavity after installation, while the disadvantage is that the irradiation surface is limited.
| Model | CR-PB-UV-1 | External dimensions (W×D×H) | 860 × 770 × 1200 mm（Customizable） |
| Internal dimensions (W×D×H) | 700 × 700 × 700 mm（Customizable） | UV Lamp | T5-8W *3 (Optional) |
| Cleaning air speed | 0.36 to 0.54 m/s | Blower | Noise level < 60 dB |
| Door interlock type | Electronic | Control | Touch buttons on both sides |
| Windows | Double tempered glass | Compliance with GMP guidelines | Yes |
| Enclosure material | 304 Stainless steel | Handle and Hinge | 304 Stainless steel |
| Power supply | 220 V，50 Hz |
UV pass box parameter table
